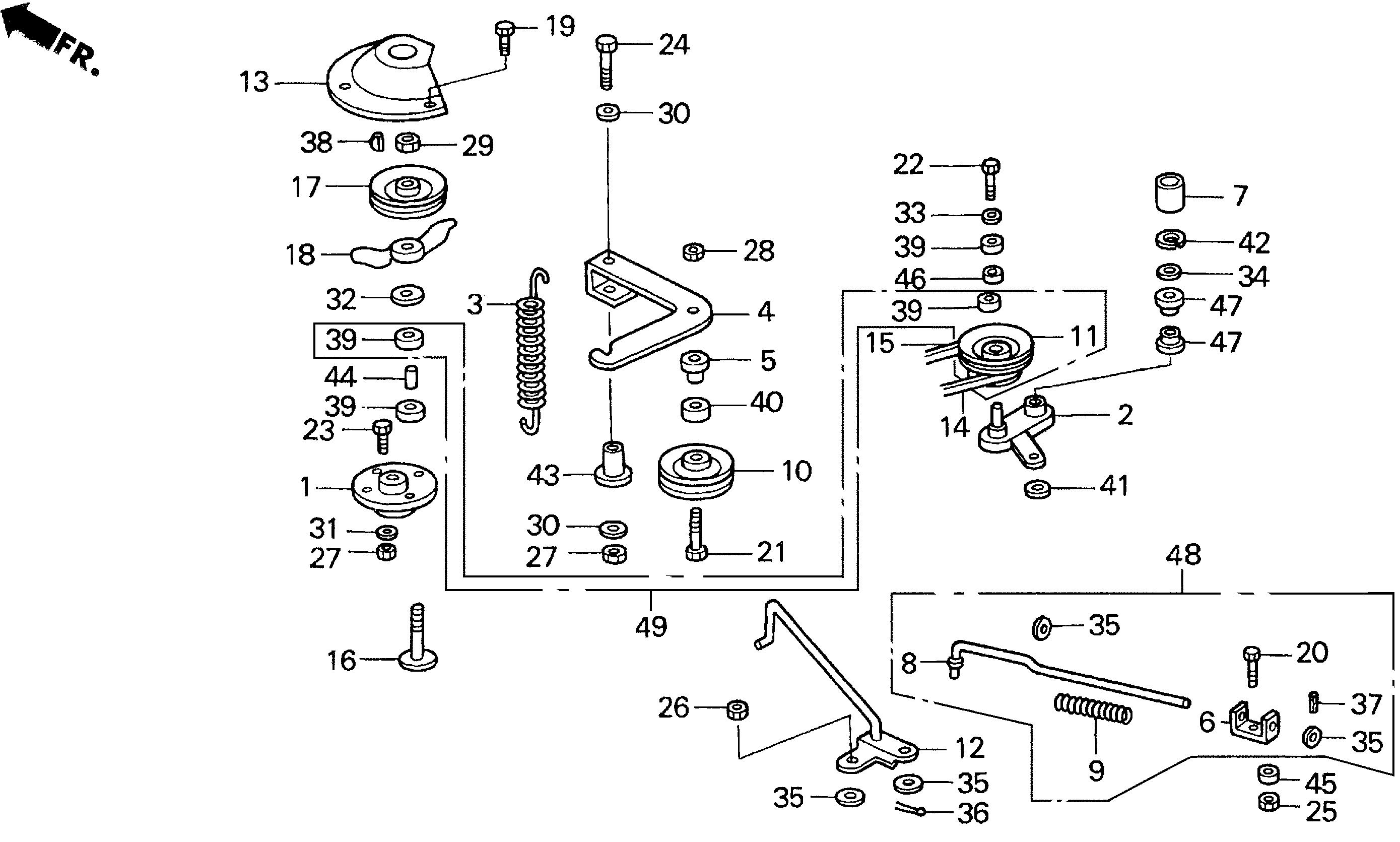

Lawn Tractor HA HA4118 HA4118 H38A MZCH-6000001-9999999 HA4118 BLADE SHAFT@BLADE PULLEY - ABC Equipment Rental & Sales

Ref No
Part Number
Description
Serial Range
Qty
Price

Ref No
1
Part Number
72711-V09-A01
Description
HOUSING, BEARING (NOT AVAILABLE)
Serial Range
1000001 - 9999999

Ref No
2
Part Number
76120-V09-A01
Description
ARM, TENSION
Serial Range
1000001 - 9999999
Qty
Price
$99.00

Ref No
3
Part Number
76122-V09-A01
Description
SPRING, TENSIONER ARM
Serial Range
1000001 - 9999999
Qty
Price
$13.40

Ref No
4
Part Number
76123-V09-A01
Description
ARM, TENSION (DECK)
Serial Range
1000001 - 9999999
Qty
Price
$25.84

Ref No
5
Part Number
76124-V09-A01
Description
COLLAR, TENSION ROLLER
Serial Range
1000001 - 9999999
Qty
Price
$1.58

Ref No
6
Part Number
76126-V09-A01
Description
BRACKET, TENSIONER
Serial Range
1000001 - 9999999

Ref No
7
Part Number
76139-V09-D01
Description
CAP, PIVOT
Serial Range
1000001 - 9999999
Qty
Price
$7.22

Ref No
8
Part Number
76128-V09-A01
Description
ROD, TENSIONER (NOT AVAILABLE)
Serial Range
1000001 - 9999999

Ref No
9
Part Number
76129-V09-A01
Description
SPRING, TENSIONER
Serial Range
1000001 - 9999999

Ref No
10
Part Number
76130-V09-A01
Description
ROLLER, TENSIONER
Serial Range
1000001 - 9999999
Qty
Price
$47.54

Ref No
11
Part Number
76140-V09-A01
Description
PULLEY, DRIVEN
Serial Range
1000001 - 9999999

Ref No
12
Part Number
76143-V09-A01
Description
HANDLE, TENSION
Serial Range
1000001 - 9999999
Qty
Price
$19.48

Ref No
13
Part Number
76156-V09-A01
Description
COVER, L. BELT
Serial Range
1000001 - 9999999
Qty
Price
$79.24

Ref No
14
Part Number
76181-V09-A01
Description
V-BELT, BLADE
Serial Range
1000001 - 9999999
Qty
Price
$40.64

Ref No
15
Part Number
76182-V09-A01
Description
V-BELT, DECK (NOT AVAILABLE)
Serial Range
1000001 - 9999999
Qty
Price
$36.98

Ref No
16
Part Number
76212-V09-A01
Description
SHAFT, BLADE
Serial Range
1000001 - 9999999
Qty
Price
$86.44

Ref No
17
Part Number
76220-V09-A01
Description
PULLEY, BLADE
Serial Range
1000001 - 9999999
Qty
Price
$25.14

Ref No
18
Part Number
76223-V09-A01
Description
FAN, BLADE PULLEY
Serial Range
1000001 - 9999999
Qty
Price
$4.68

Ref No
19
Part Number
90101-V09-A01
Description
SCREW, TAPPING (6X12)
Serial Range
1000001 - 9999999

Ref No
20
Part Number
90101-V09-D01
Description
BOLT, CARRIAGE (8X25)
Serial Range
6001210 - 9999999
Qty
Price
$0.36

Ref No
20
Part Number
90111-V09-A01
Description
BOLT, HEX. (8X25)
Serial Range
1000001 - 6001209
Qty
Price
$0.38

Ref No
21
Part Number
90122-V09-A01
Description
BOLT, FLANGE (10X40)
Serial Range
6001210 - 9999999
Qty
Price
$1.46

Ref No
22
Part Number
90123-V09-A01
Description
BOLT, FLANGE (10X20)
Serial Range
6001210 - 9999999
Qty
Price
$0.82

Ref No
23
Part Number
90125-V09-A01
Description
BOLT, HEX. (8X30)
Serial Range
1000001 - 9999999
Qty
Price
$0.46

Ref No
24
Part Number
90134-V09-A01
Description
BOLT, HEX. (8X70) (NOT AVAILABLE)
Serial Range
1000001 - 9999999

Ref No
25
Part Number
90301-V09-A01
Description
NUT, FLANGE (8MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.38

Ref No
26
Part Number
90302-V09-A01
Description
NUT A, LOCK (8MM)
Serial Range
1000001 - 9999999
Qty
Price
$2.06

Ref No
27
Part Number
90304-V09-A01
Description
NUT B, LOCK (8MM) (NOT AVAILABLE)
Serial Range
1000001 - 9999999
Qty
Price
$2.50

Ref No
28
Part Number
90310-V09-A01
Description
NUT, LOCK (10MM)
Serial Range
1000001 - 9999999
Qty
Price
$2.94

Ref No
29
Part Number
90315-V09-A01
Description
NUT, LOCK (3/4"-16)
Serial Range
1000001 - 9999999
Qty
Price
$6.16

Ref No
30
Part Number
90522-V09-A01
Description
WASHER, TENSIONER ARM
Serial Range
1000001 - 9999999
Qty
Price
$0.96

Ref No
31
Part Number
90523-V09-A01
Description
WASHER, HOUSING MOUNT (NOT AVAILABLE)
Serial Range
1000001 - 9999999

Ref No
32
Part Number
90524-V09-A01
Description
WASHER, SPINDLE (NOT AVAILABLE)
Serial Range
1000001 - 9999999
Qty
Price
$0.46

Ref No
33
Part Number
90525-V09-A01
Description
WASHER, FLAT (11X34X3)
Serial Range
1000001 - 9999999
Qty
Price
$1.10

Ref No
34
Part Number
90526-V09-A01
Description
WASHER, FLAT (1.25")
Serial Range
1000001 - 9999999
Qty
Price
$0.46

Ref No
35
Part Number
90528-V09-A01
Description
WASHER, FLAT (8.4X17X1.6)
Serial Range
1000001 - 9999999
Qty
Price
$0.18

Ref No
36
Part Number
90760-V09-A01
Description
PIN, DRAFT ARM COTTER
Serial Range
1000001 - 9999999
Qty
Price
$0.12

Ref No
37
Part Number
90762-V09-A01
Description
PIN, SPRING
Serial Range
1000001 - 9999999
Qty
Price
$0.30

Ref No
38
Part Number
90763-V09-A01
Description
KEY, WOODRUFF
Serial Range
1000001 - 9999999
Qty
Price
$0.46

Ref No
39
Part Number
91053-V09-A01
Description
BEARING A, CUTTER DECK
Serial Range
1000001 - 9999999
Qty
Price
$32.28

Ref No
40
Part Number
91054-V09-A01
Description
BEARING B, CUTTER DECK
Serial Range
1000001 - 9999999
Qty
Price
$20.52

Ref No
41
Part Number
91151-V09-A01
Description
RETAINER, FRAME (NA USE ALT:06814-V09-D01)
Serial Range
1000001 - 9999999
Qty
Price
$2.00

Ref No
42
Part Number
91152-V09-A01
Description
RETAINER
Serial Range
1000001 - 9999999
Qty
Price
$3.22

Ref No
43
Part Number
91554-V09-A01
Description
BUSHING, IDLER PIVOT (NOT AVAILABLE)
Serial Range
1000001 - 9999999
Qty
Price
$5.52

Ref No
44
Part Number
91559-V09-A01
Description
COLLAR, SPACER
Serial Range
1000001 - 9999999
Qty
Price
$2.64

Ref No
45
Part Number
91560-V09-A01
Description
BUSHING, PIVOT IDLER
Serial Range
1000001 - 9999999
Qty
Price
$5.00

Ref No
46
Part Number
91562-V09-A01
Description
COLLAR, DRIVEN PULLEY
Serial Range
1000001 - 9999999
Qty
Price
$78.36

Ref No
47
Part Number
91564-V09-A01
Description
BUSHING, DRIVE
Serial Range
1000001 - 9999999
Qty
Price
$3.50

Ref No
48
Part Number
76011-V09-A01
Description
TENSIONER SET (NOT AVAILABLE)
Serial Range
1000001 - 9999999
Qty
Price
$59.50

Ref No
49
Part Number
76013-V09-A01
Description
PULLEY SET (NOT AVAILABLE)
Serial Range
1000001 - 9999999
Qty
Price
$95.50
